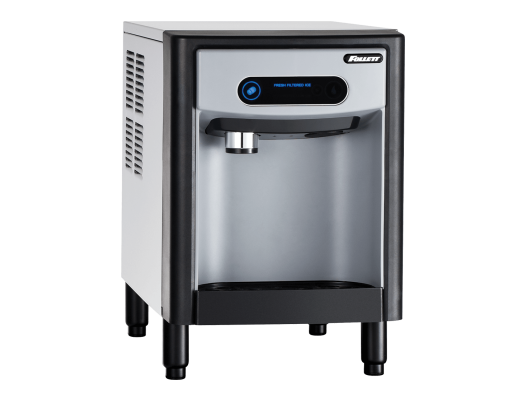

Follett E7 Countertop Dispensers
Follett E7 Series countertop is the only ice and water dispenser specifically
designed to fit underneath overhead cabinets. This dispenser produces
54.4 kg (125 lbs) of consumer-preferred Chewblet® ice per day, while holding
3 kg (7 lbs) of ice in storage, ideal for a 25-30 person work group.
Follett E7 Countertop Ice and Water Dispensers
The 44.7 cm (17.5”) tall Follett E7 series countertop features include sanitary, capacitive touch dispensing, and a unique drainless design that refreezes melt water from the storage hopper, allowing this model to be installed virtually anywhere there is water and electricity available. Now available with refreshing, sparkling water as an option. Intended for commercial use only.
Key Features
3.2 kg (7 lb) ice storage capacity producing 125 lb of Chewblet® ice per day
Consumer-preferred Chewblet ice provides healthful, high-quality refreshment
Simple to use, sanitary dispensing
Flexible installation – locate ice and water wherever you need it
Enough ice for up to 75 people, depending on model
Compact size, only 44.8 cm (17.62″) tall to fit on counters and under standard cabinets
Follett E7 Series Benefits
Key benefits
-
Height: 44.7 cm (17.59″)
-
Width: 37.1 cm (14.62″)
-
Depth: 56.2 cm (22.12″)
-
Storage Capacity: 3.2 kg (7 lbs)
-
Daily Production: 56.7 kg (125 lbs)
-
Other: Drainless
Integral air-cooled ice machine with up to 54.4 kg (120 lb) daily production of popular Chewblet ice
- Soft, chewable, compressed nugget ice is preferred over cubes
- Environmentally responsible R134a refrigerant with zero ozone depletion potential
- Energy saving sleep mode
- Quiet production without noisy harvest cycles
Durable, attractive dispenser
- Modern styling, stainless steel exterior with accent trim
- Dispense-activated soft blue light illuminates point-of-use- easy-to-clean
- Removable 590 ml (20 oz) drip tray
Designed with sanitation in mind
- Agion® silver-based antimicrobial product protection of key ice and water contact components
- Capacitive touch controls eliminate direct contact with ice
Installation
- Comes fully assembled- two easy connections
- Electric and water
- Drainless design allows dispenser to be placed anywhere a water line can be run and eliminates the cost of a drain installation
Warranty
- 2 years parts and labor, 5 years compressor parts
Accessories
- 10.16 cm (4.00″) leg kit for CI – countertop models (item# 00956300)
- 15.24 cm (6.00″) leg kit for base stand (item# 00956318)
- Drip tray drain kit for countertop models (includes 10.16 cm (4.00″) legs) (item# 00981977)
- Drip tray drain kit for countertop models used with base stand accessory (does not include 10.16 cm (4.00″) legs) (item# 00956375)
- Filter cartridge, replacement 5 micron particle/carbon (item# 00968107)
- Claris ® hardness removal filtration system (item# 00986059)
- Base stand to convert CI to FS (Item# 00956292)
- SafeCLEAN Plus, liquid, 1 x 8 oz bottles (Item# 01147826)
- SafeCLEAN Plus, liquid, 6 x 8 oz bottles (Item# 01149954)
- SafeCLEAN Plus, liquid, carton of 24 x 8 oz bottles (Item# 01149962)
- Cleaning and sanitising kit for sparkling water carbonator (Item# 01147545)
- Replacement filter for Claris system (Item# 00985127)
- Extended 3rd year warranty/unit (Item# 00960732)
Follett E7 Series Technical Specification
| Specification | |
|---|---|
| Ice storage capacity | 3.2 kg (7 lb) |
| Width | 37.1 cm (14.62") |
| Depth | 56.2 cm (22.12") |
| Height, countertop models | 44.8 cm (17.62") |
| Height, with optional base stand | 62.0 cm (24.41") |
| Height, optional base stand | 62.0 cm (24.41") |
| Dispense height clearance | 7.62 cm (3.00") on each side |
| Ventilation clearance | 7.62 cm (3.00") on each side |
| Service clearance | 7.62 cm (3.00") behind and on each side of dispenser |
| 230 V/50/1 electrical | 5 amps. Dedicated 10 amp circuit, fuse or breaker. |
| Water inlet | 1/4" push-in |
| Air temperature | 10 - 38 C (50 -100 F) |
| Water temperature | 4 - 32 C (40 - 90 F) |
| Water pressure | 69 - 483 kpa (10 - 70 psi) |
| Ice production at 21 C (70 F) air and 10 C (50 F) water | 54.4 kg (120 lb) |
| Ice production at 32 C (90 F) air and 21 C (70 F) water | 40.8 kg (90 lb |
| Energy consumption 32 C (90 F) air and 21 C (70 F) water | 7.1 kWh per 45.4 kg (100 lb) ice |
| Heat rejection | 498 W (1700 BTU/hr) |
| Water consumption | 45.4 L (12 gal) of potable water per 45.4 kg (100 lb) of ice |
| Approximate net weight – countertop models | 34 kg (74 lb) |
| Approximate net weight – optional base stand | 11 kg (24 lb) |
