Follett Horizon Parts
Looking for genuine spare parts for your Follett Horizon ice machine? As the UK’s only supplier of genuine Follett spare parts, we offer a wide range of components for your ice machine or dispenser. From thermostats and water pumps to circuit boards and sensors, we have everything you need to keep your Follett Horizon running smoothly.
Ordering replacement Follett Horizon parts is quick and easy. Simply browse the page, identify the part number, then call or email us and we’ll give you a price. Note; this isn’t an exhaustive list of all ice machine spare parts we supply. If you can’t see your manufacturer/ model on the list below or not sure which part you need, then call our experts on 01869 247947.

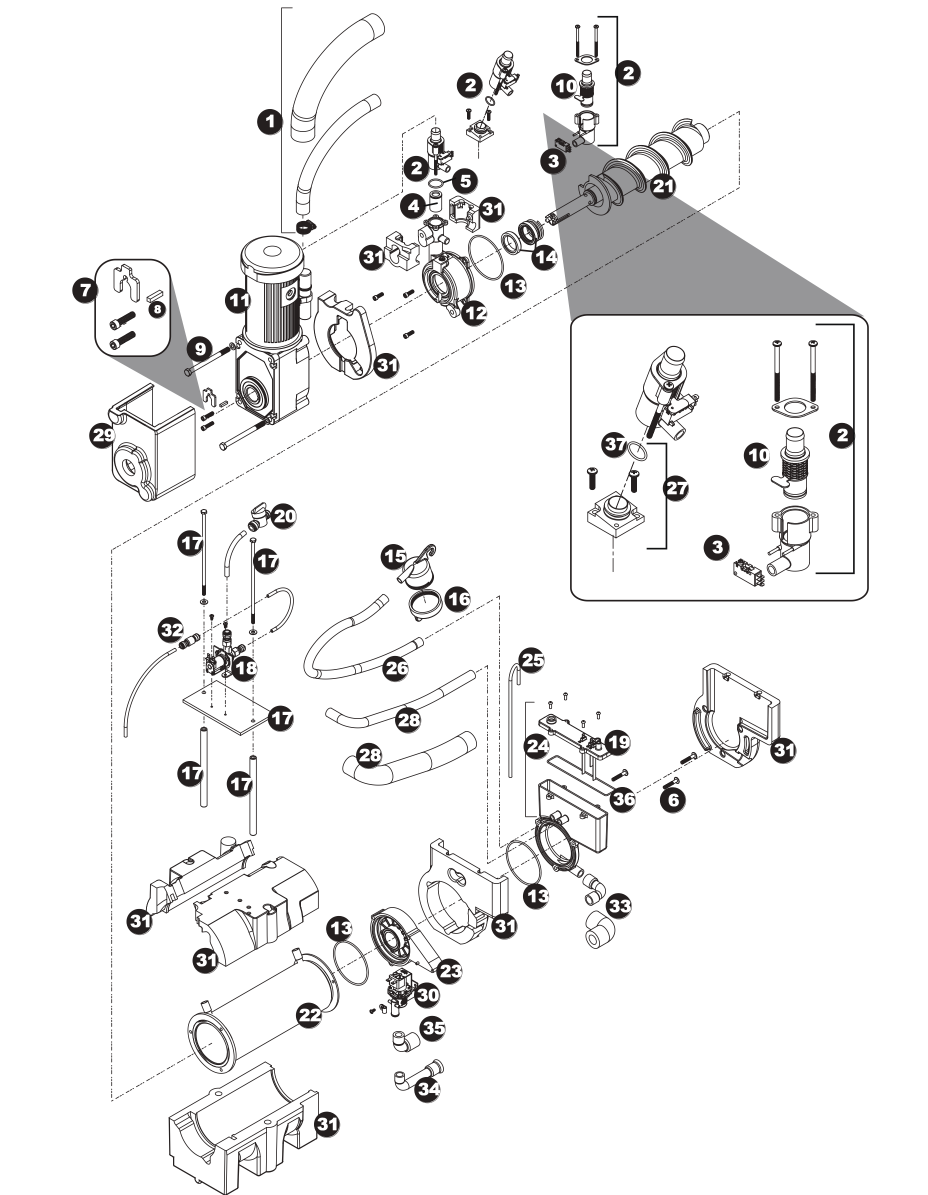

Follett Horizon Evaporator
| Reference | Description | Part No. |
|---|---|---|
| 1 | Tube, ice transport, insulated | 01118181 |
| 2 | Shuttle assembly | 01118132 |
| 2 | Shuttle assembly, IMDV | 01118140 |
| 3 | Switch, shuttle | 01006261 |
| 4 | Compression nozzle | 01278654 |
| 5 | O-ring, shuttle | 01164920 |
| 6 | Screw, reservoir (3 required) | 206395 |
| 6 | Screw, reservoir (10 pack) | 01333830 (After Serial Number L60417) |
| 7 | Auger hardware (includes screws, key, retainer) | 01118611 |
| 8 | Key | 01164938 |
| 9 | Bolt, gearmotor mounting (2) (self-contained units), includes washers | 01118629 |
| 10 | Cartridge assembly, shuttle spring | 01118033 |
| 10 | Cartridge, shuttle spring, IMDV | 01118041 |
| 11 | Gearmotor, 220 V (includes capacitor) | 01118025 |
| 12 | Main housing, self-contained | 01117969 |
| 13 | O ring | 01301720 |
| 14 | Seal, auger shaft | 01302249 |
| 15 | Cup, sanitizer | 01164995 |
| 16 | Cap, sanitizer | 01118637 |
| Not shown | Tubing, water, 3/8" OD | 502719 |
| Not shown | Tubing, water, 1/4" OD | 502079 |
| 17 | Retainer kit, evaporator | 01118652 |
| 18 | Solenoid, water feed (220 V) | 01301688 |
| 19 | Reservoir lid and sensors (includes screws and o-ring) | 01118108 |
| 20 | Valve, shut-off, water | 502921 |
| 21 | Auger, 1010 self-contained (includes seal, key, and auger hardware) | 01117928 (1010 only) |
| 21 | Auger, 1410 self-contained (includes seal, key, and auger hardware) | 01117936 (1410 only) |
| 22 | Evaporator, 1010 | 01118066 (1010 only) |
| 22 | Evaporator, 1410 | 01118074 (1410 only) |
| 23 | Rear bushing housing and bushing (includes (1) o-ring) | 01118082 |
| 24 | Reservoir assembly, water (includes lid) | 01118116 |
| 25 | Tube, vent (17" required) | 502079 |
| 26 | Tube, sanitizer | 01118660 |
| 27 | Kit, MicroChewblet | 01161843 |
| 28 | Tube, shuttle drain, insulated | 01118678 |
| 29 | Insulation, gearbox, 220 V | 01165240 |
| 30 | Solenoid, purge, 220 V | 01199645 |
| 30 | Solenoid, purge, 220 V | 01148733 (After Serial Number L60417) |
| 31 | Insulation kit, 1010 evaporator/reservoir | 01302256 (1010 only) |
| 31 | Insulation kit, 1410 evaporator/reservoir | 01302264 (1410 only) |
| 32 | Check valve | 01122381 |
| 33 | Tube, drain, reservoir, insulated | 01118124 |
| 34 | Tube, drain, 1010 | 01302272 (1010 only) |
| 35 | Tube, drain, 1410 | 01302280 (1410 only) |
| 36 | O-ring, reservoir lid | 01302298 |
| Not shown | Kit, scale (includes reservoir, purge solenoid, drain tubes and tting) | 01122654 |
| 37 | O-ring, MicroChewblet | 01161850 |
| Not shown | Drain kit (includes 2 ft. x 1" OD silicone tubing, 3/4" x 1" slip, 3/4" barb 3/4" FPT (2), 3/4" barb x 3/4" FPT elbow) | 01210350 |

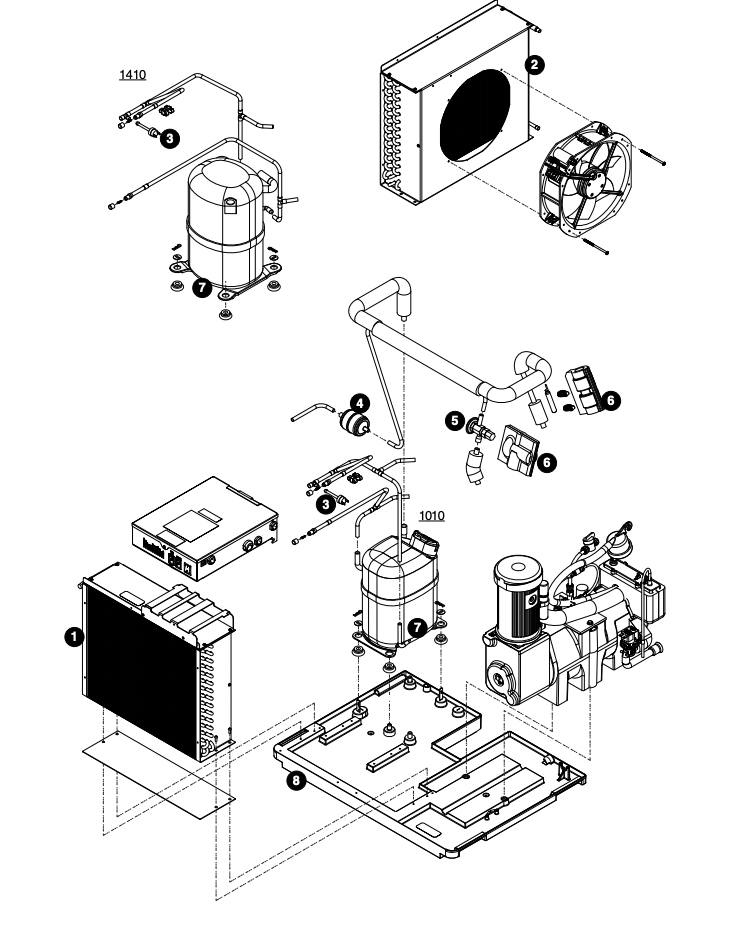

Follett Horizon Air-Cooled Assembly
| Reference | Description | Part No. |
|---|---|---|
| 1 | Condenser | 01118892 |
| 2 | Fan motor assembly - 220 V/60 Hz | 01117803 |
| 3 | Cut-out, high pressure safety | 00117077 |
| 3 | Cut-out, high pressure safety | 01210350 (After Serial Number L60417) |
| 4 | Drier | 01153683 |
| 5 | Valve, expansion, thermal (includes insulation and (2) clamps) | 01118942 |
| 6 | Insulation, TXV (body and bulb) | 502830 |
| 7 | Compressor, 1010 - 220 V/60 Hz (includes start/run components and drier) | 01117837 (1010 only) |
| 7 | Compressor, 1410 - 220 V/60 Hz (includes start/run components and drier) | 01117845 (1410 only) |
| 8 | Base, ice machine | 01117795 |

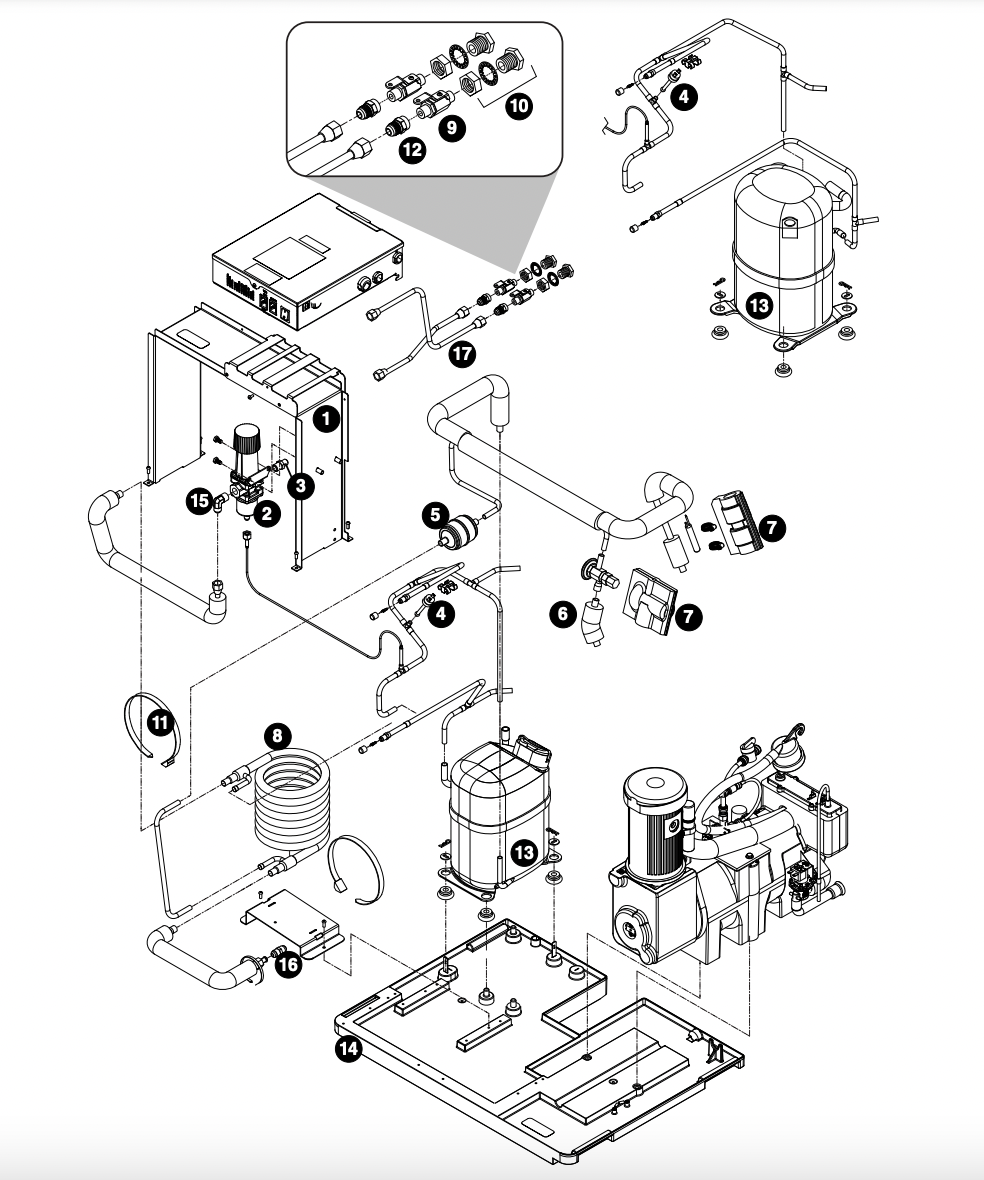

Follett Horizon Parts – Water-Cooled Assembly
| Reference | Description | Part No. |
|---|---|---|
| 1 | Electrical box support | 01118934 |
| 2 | Valve, water regulating | 00131052 |
| 3 | Union, water | 01302827 |
| 4 | Cut-out, high pressure safety | 01302835 |
| 5 | Drier | 01153683 |
| 6 | Valve, expansion, thermal (includes insulation and (2) clamps) | 01118942 |
| 7 | Insulation, TXV (body and bulb) | 502830 |
| 8 | Condenser, w/c, 1010/1410 | 01302843 |
| 9 | Valve, shut-off, water | 502222 |
| 10 | Coupling | 206411 |
| 10 | Coupling | 01305309 (After Serial Number L60417) |
| 11 | Ty-rap | 01305309 |
| 12 | Fitting, ared adapter | 01302850 |
| 13 | Compressor, 1010 - 220 V/60 Hz (includes start/run components and drier) | 01117837 (1010 only) |
| 13 | Compressor, 1410 - 220 V/60 Hz (includes start/run components and drier) | 01117845 (1410 only) |
| 14 | Base, ice machine | 01117795 |
| 15 | Elbow | 01302868 |
| 16 | Coupling, 3/8" double flare | 01302876 |
| 17 | Tubes, condenser inlet and exit | 01122373 |
Follett Horizon Parts – Electric Box
| Reference | Description | Part No. |
|---|---|---|
| 1 | Shuttle actuator | 00171322 |
| 2 | Clamp | 500377 |
| 3 | Actuator elbow (includes 00167122 and 209100) | 00171264 |
| 4 | Screws | 01303064 |
| 5 | Gasket | 01303072 |
| 6 | Actuator body | 00171272 |
| 7 | Gasket, coupling | 01303080 |
| 8 | Ring, locking (includes 00126532) | 00171371 |
| 9 | Ice transport tube, 10' (3 m) | 00171280 |
| 9 | Ice transport tube, 20' (6 m) | 00171298 |
| 10 | Insulation, transport tube | 501176 |
| Not Shown | Insulated polywire ice transport tube, per foot | 00174896 |
| 11 | Insulation, elbow | 01303098 |
| 12 | Insulation, actuator | 01303106 |
| 13 | Ice transport tube, top mount, 30" (762 mm) | 00171306 |
| 14 | Extension- ll tube, 9" | 01303114 |
| 14 | Extension- ll tube, 4" | 01303122 |
| Not Shown | Integration kit, top mount, Harmony or Bin | 00171389 |
| Not Shown | Integration kit, RIDE model, Harmony or Bin, (includes 10' (3 m) of tube and insulation) | 00171397 |
| Not Shown | Integration kit, drop in | 00145334 |
| Not Shown | Integration kit, Cornelius PR150 | 00144774 |
| Not Shown | Integration kit, Vision (does not include ice tube) | 00997171 |
| Not Shown | Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) | 01303130 |
| Not Shown | Diverter plate (right-hand dispense chute on dual-agitator dispensers) | 00996207 |
| Not Shown | SafeCLEAN Plus, case of 6 | 01149954 |
| Not Shown | SafeCLEAN Plus, case of 24 | 01149962 |
| Not Shown | Sani-Sponge kit | 00132068 |
| Not Shown | High-capacity filter system | 01303148 |
| Not Shown | Primary filter (1) | 00978965 |
| Not Shown | Primary filter (1) | 01333814 (After Serial Number L60417) |
| Not Shown | Primary filter (6) | 00978973 |
| Not Shown | Pre-filter (1) | 00130211 |
| Not Shown | Pre-filter (1) | 01333822 (After Serial Number L60417) |
| Not Shown | Pre-filter (12) | 00954305 |
| Not Shown | IMSII or IMSIII sanitizer concentrate - 16 oz. | 00979674 |
| Not Shown | Sponge, sanitary, pack of 24 | 01075431 |
| Not Shown | Kit, IMDV (included IMDV cartridge and communication cable) | 01116177 |
| Not Shown | Tubing, silicone (per foot) | 01303155 |
Follett Horizon Parts – Integration Kit
| Reference | Description | Part No. |
|---|---|---|
| 1 | Shuttle actuator | 00171322 |
| 2 | Clamp | 500377 |
| 3 | Actuator elbow (includes 00167122 and 209100) | 00171264 |
| 4 | Screws | 01303064 |
| 5 | Gasket | 01303072 |
| 6 | Actuator body | 00171272 |
| 7 | Gasket, coupling | 01303080 |
| 8 | Ring, locking (includes 00126532) | 00171371 |
| 9 | Ice transport tube, 10' (3 m) | 00171280 |
| 9 | Ice transport tube, 20' (6 m) | 00171298 |
| 10 | Insulation, transport tube | 501176 |
| Not Shown | Insulated polywire ice transport tube, per foot | 00174896 |
| 11 | Insulation, elbow | 01303098 |
| 12 | Insulation, actuator | 01303106 |
| 13 | Ice transport tube, top mount, 30" (762 mm) | 00171306 |
| 14 | Extension- ll tube, 9" | 01303114 |
| 14 | Extension- ll tube, 4" | 01303122 |
| Not Shown | Integration kit, top mount, Harmony or Bin | 00171389 |
| Not Shown | Integration kit, RIDE model, Harmony or Bin, (includes 10' (3 m) of tube and insulation) | 00171397 |
| Not Shown | Integration kit, drop in | 00145334 |
| Not Shown | Integration kit, Cornelius PR150 | 00144774 |
| Not Shown | Integration kit, Vision (does not include ice tube) | 00997171 |
| Not Shown | Diverter plate (single agitator Cornelius dispensers and left-hand dispense chute on dual-agitator Cornelius dispensers) | 01303130 |
| Not Shown | Diverter plate (right-hand dispense chute on dual-agitator dispensers) | 00996207 |
| Not Shown | SafeCLEAN Plus, case of 6 | 01149954 |
| Not Shown | SafeCLEAN Plus, case of 24 | 01149962 |
| Not Shown | Sani-Sponge kit | 00132068 |
| Not Shown | High-capacity filter system | 01303148 |
| Not Shown | Primary filter (1) | 00978965 |
| Not Shown | Primary filter (1) | 01333814 (After Serial Number L60417) |
| Not Shown | Primary filter (6) | 00978973 |
| Not Shown | Pre-filter (1) | 00130211 |
| Not Shown | Pre-filter (1) | 01333822 (After Serial Number L60417) |
| Not Shown | Pre-filter (12) | 00954305 |
| Not Shown | IMSII or IMSIII sanitizer concentrate - 16 oz. | 00979674 |
| Not Shown | Sponge, sanitary, pack of 24 | 01075431 |
| Not Shown | Kit, IMDV (included IMDV cartridge and communication cable) | 01116177 |
| Not Shown | Tubing, silicone (per foot) | 01303155 |
Follett Horizon Skin Assembly
| Reference | Description | Part No. |
|---|---|---|
| 1 | Grille, front | 01303163 |
| 2 | Front cover, air-cooled, 1010/1410 | 01119007 |
| 2 | Front cover, water-cooled, 1010/1410 | 01119023 |
| Not Shown | Tubing, water, 3/8" OD | 502719 |
| 3 | Coupling (includes O-ring) | 00171207 |
| 4 | O-ring | 01303171 |
| 5 | Bulkhead fitting | 00171215 |
| 6 | Catp, nut, ice hose | 01303189 |
| 7 | Hose clamp | 500377 |
| 8 | Plate, strain relief | 00192070 |
| 9 | Louvered docking assembly, 1010 (includes strain relief plate, bulkhead fitting) | 01119015 (1010 only) |
| 9 | Louvered docking station, 1410 (includes strain relief plate, bulkhead fitting) | 01119031 (1410 only) |
| 10 | Screw | 01303197 |
| 11 | Bulkhead connector kit | 00171223 |
| Not Shown | Gasket, front cover (inside), per foot (4 feet required) | 00135574 |
| Not Shown | Louver, intake/exhaust (25.75" W x 17.75" H) with gasket) | 01085448 |
| Not Shown | Gasket, air intake (front cover, outside) (7 feet required) | 01305317 |
| Not Shown | Fitting, drain | 00109728 |
