ICS 700 Compressed Ice Maker (Discontinued)


The ICS 700 is a high performance and compact ice machine
producing compressed ice which is both crystalline and free flowing,
the ice of choice for the display of fresh foods.

ICS 700 Ice Machines

This product has now been discontinued; however we still supply spares for all old models. Please contact us if you need a specific spare part for your ice machine.

The ICS 700 is the ice machine of choice for the UK’s leading supermarkets for the display of fresh foods. It features critical bearings that are unique in design and lubricant free contributing to renowned reliability and durability.

Key Features

Auger style ice making mechanics for continuous ice output and efficient energy use

Compressed ice. 80% true ice content. Crystalline free flowing ice even after 24hr storage

Improved lubricant free auger top bearing gives 100% longer life

Improved copper coil wrapped stainless steel evaporator strengthened in high stress areas

Unique bearing design ensures long life and eliminates specialist tools to access major components

Major ice making components auger, evaporator and extrusion head all food grade stainless steel

ICS 700 Benefits


Allow sufficient clearance to dissipate approximately 2.5 kw heat of rejection. In confined spaces mechanical air extraction may be required. Note, optional top panel mounted air duct accessory (part number EQWS-025) available to assist ventilation where the machine sits close to a ceiling.

Water supply

Supplied 1 meter 1⁄4 inch John Guest tubing complete with in line check valve and terminated with John Guest 1⁄2 inch BSP adaptor. Connect to 15-80 psig potable water supply terminated with 1⁄2 inch BSP compression stop-cock. Do not use with an artificially softened water supply.

Optional water treatment filter kit available complete with fittings part number FR008.


Supplied with 1⁄2 inch OD clear flexible PVC drainage tube. Route to typically “P” trapped mains drainage upstand. Alternatively route to drainage via ice storage bin (not supplied).

Power supply

Supplied 1.5 meter power cord. Connect to 13 amp 230/1/50 isolated splashproof (IP65) power supply. Running current 4 amp.

Working tolerances

Ambient temperature 10-35°c Water supply temperature 10-35°c Water supply pressure 15-80 psig Voltage tolerance 230v + 10% – 6%

ICS 700 Technical Specification

Ice typeCompressed crystalline, free flowing 80% true ice content
Ice output per 24hrs260kg @ 21°c. Ambient 15°c water
Dimensions (w x d x h)360 x 640 x 620 mm
WeightWith packaging 65kg, net 58kg.
Power supply220 – 230v/1/50 hz isolated supply.
Running current and fuze sizeCurrent: 3.4 amps
Fuse: 13 amps
Energy consumption (21°c Air/15°c water)3.49 kwh per 100lb (45.4 kg) ice.
RefrigerantR404A Charge weight 680 grams.
Evaporator / Auger extrusion head materialsStainless steel 304

ICS 700 Documentation

Specification Documents

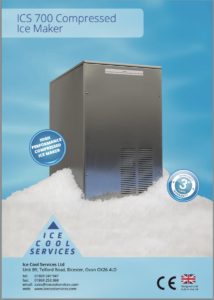

ICS 700 Compressed Ice Maker


Data sheet
