Follett E7
Parts
We are the UK’s only supplier of genuine Follett E7 parts. Browse
the page to identify your part number.
Follett E7 Parts
Looking for genuine spare parts for your Follett E7 ice machine? As the UK’s only supplier of genuine Follett spare parts, we offer a wide range of components for your ice machine or dispenser. From thermostats and water pumps to circuit boards and sensors, we have everything you need to keep your Follett E7 running smoothly.
Ordering replacement Follett E7 parts is quick and easy. Simply browse the page, identify the part number, then call or email us and we’ll give you a price. Note; this isn’t an exhaustive list of all ice machine spare parts we supply. If you can’t see your manufacturer/ model on the list below or not sure which part you need, then call our experts on 01869 247947.

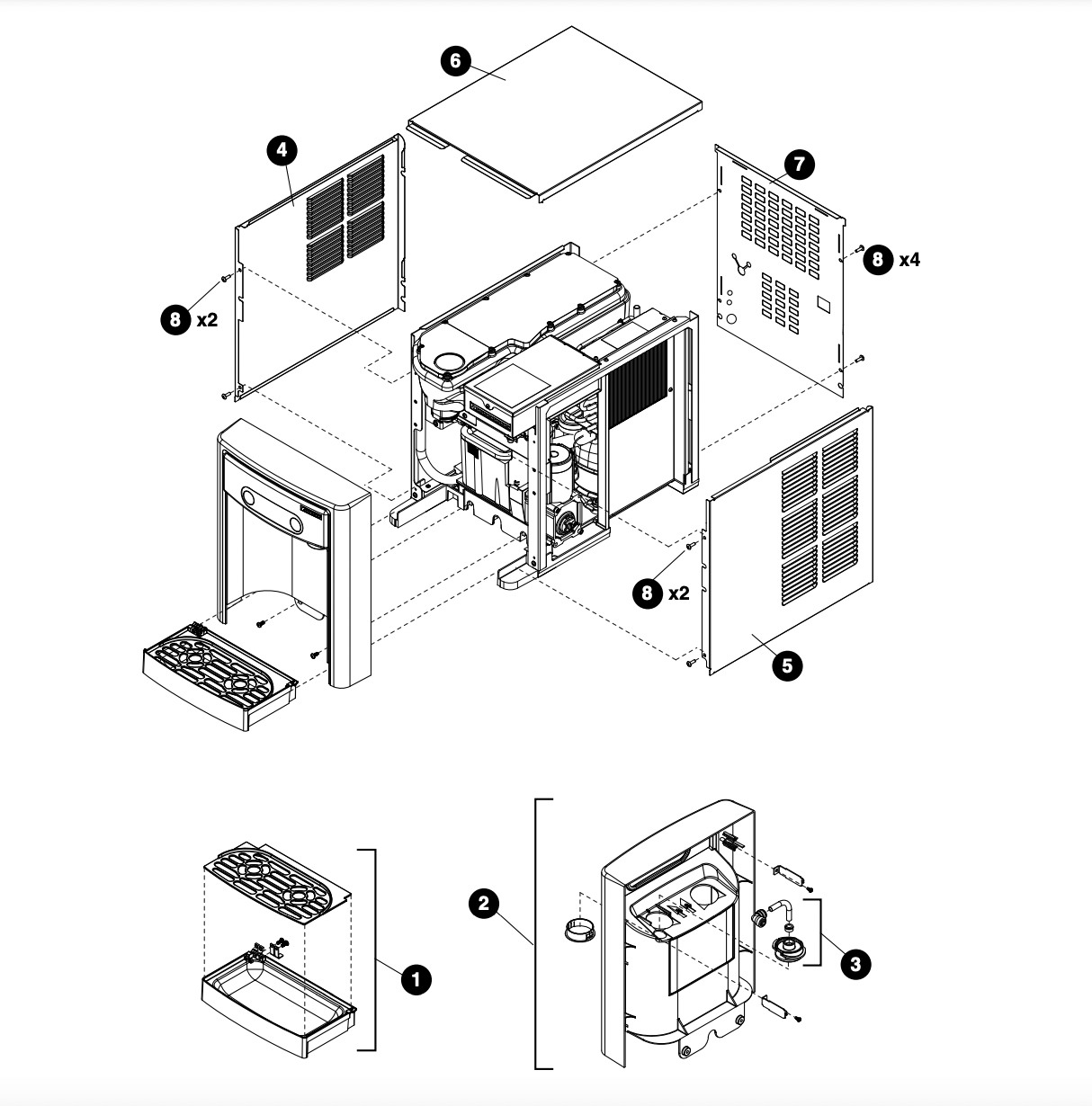

Follett E7 Series Exterior – Serial Numbers E01087 TO K70778
| Reference | Description | Part No. |
|---|---|---|
| 1 | Drip Tray Assy | 00957613 |
| 2 | Panel, Front Assy - Includes Water Nozzle and Plug | 00957621 |
| 3 | Chute, Water (water option) | 00957688 |
| 4 | Panel, Left | 00932806 |
| 5 | Panel, Right | 00932798 |
| 6 | Panel, Top | 00957654 |
| 7 | Panel, Rear | 00974873 |
| 8 | Screw, M5 x 12 Phillips | 00931931 |
| Not Shown | E7 Series Packaging for Returns, Dispenser | 00957993 |
| Not Shown | Fitting, Elbow - 1/4" FPT x 1/4" Tube | 00974261 |
| Not Shown | Fitting, Elbow - 1/4" FPT x 3/8" Tube | 00990796 |
| Not Shown | Drip Tray Drain Kit | 00956375 |
| Not Shown | Drip Tray Drain Kit with 4" legs | 00981977 |
| Not Shown | Covers, Agion, User Interface | 00969030 |
| Not Shown | Drip Tray Drain Kit with 4" legs | 00981977 (above serial number K70778) |
Follett E7 Series Exterior – Model E7CL100a
| Reference | Description | Part No. |
|---|---|---|
| 1 | Drip Tray Assy | 00957613 |
| 2 | Panel, Front Assy | 00957621 |
| 3 | Panel, Left | 00932806 |
| 4 | Panel, Right | 00932798 |
| 5 | Panel, Top | 00957654 |
| 6 | Panel, Rear | 00974873 |
| 7 | Screw, M5 x 12 Phillips | 00931931 |
| 8 | User Interface | 00933879 |
| Not Shown | E7 Series Packaging for Returns, Dispenser | 00957993 |
| Not Shown | Fitting, Elbow - 1/4" FPT x 3/8" Tube | 00990796 |
| 9 | Connector, Bulkhead Reducing | 00976787 |
| Not Shown | Drip Tray Drain Kit | 00956375 |
| Not Shown | Drip Tray Drain Kit with 4" legs | 00981977 |
| Not Shown | Covers, Agion, User Interface | 00969030 |
| 10 | 1/2" Barb Fitting, Drain Tube | 01094929 |
| 11 | Bushing, Rear Panel | 00117929 |

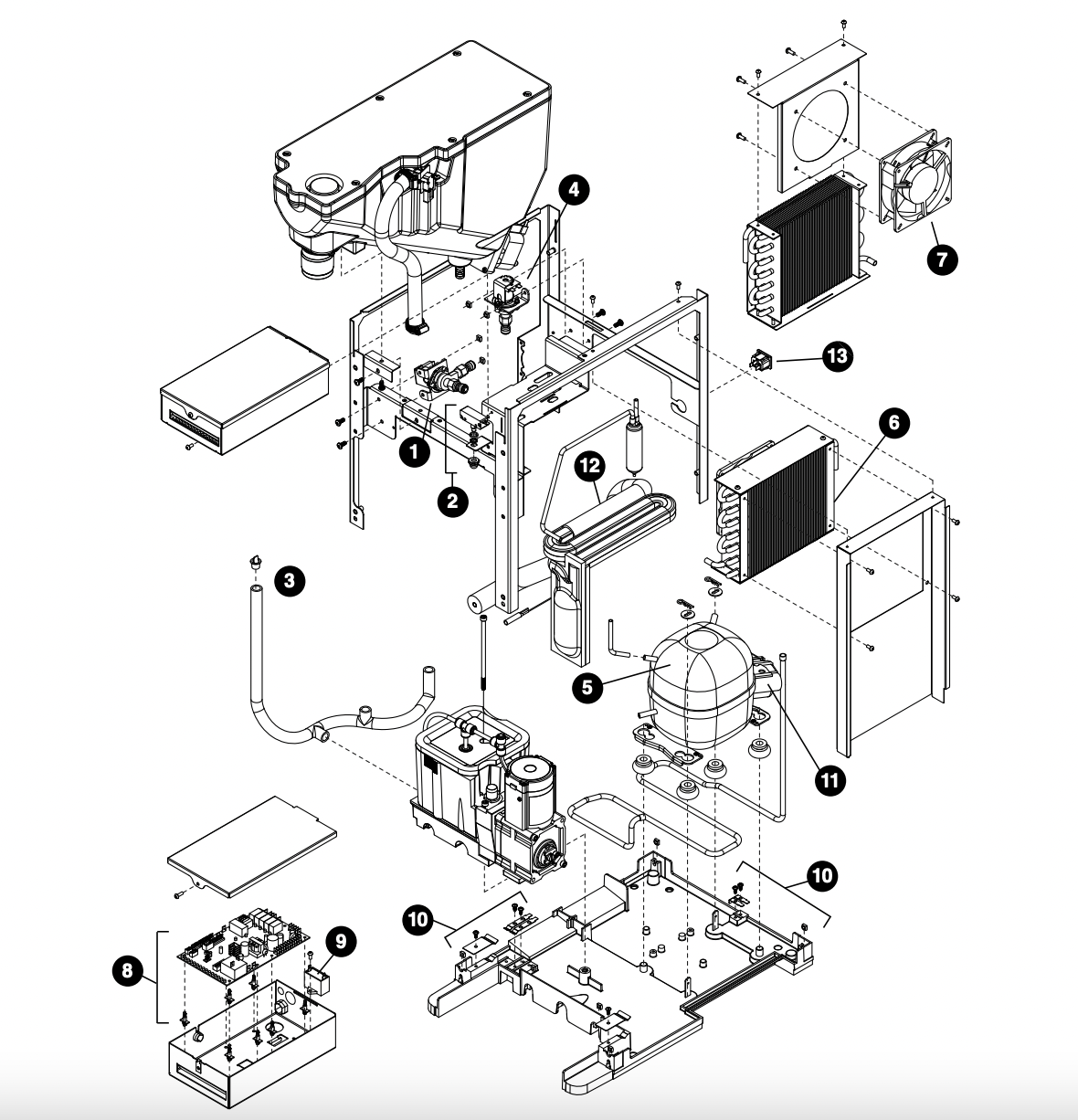

Follett E7 Series Interior – Serial Numbers E01087 to K70778
| Reference | Description | Part No. |
|---|---|---|
| 1 | Valve, Dispense Solenoid (water option) | 00968917 |
| 2 | Switch, Cleaning | 00957712 |
| 3 | Drain/Feed Tube with Cap | 00957720 |
| 4 | Valve, Failsafe Solenoid | 00968925 |
| 5 | Compressor with Mounting Hardware (230 V/50 Hz) | 00968933 |
| 6 | Condenser | 01062314 |
| 7 | Condenser Fan and Cord | 00958017 |
| 8 | Control Board with Stand-offs | 00968941 |
| 9 | Capacitor, Gearmotor | 00969048 |
| 10 | Sensor, Retainer Hardware Kit | 00968958 |
| 11 | Relay and Overload (230 V/50 Hz) | 00958066 |
| 11 | Relay and Overload (220 V/60 Hz) | 01065143 |
| 12 | Refrigeration, Piping Assy | 00958132 |
| 13 | Power Input | 00968974 |
| Not Shown | Cord, Power IEC60320-C13 to BS 1363 | 00976753 |
| Not Shown | Cord, Power IEC60320-C13 to AS 3112 | 00976761 |
| Not Shown | Cord, Power IEC60320-C13 to CEE 7/7 | 00976779 |
| Not Shown | Cord, Power IEC60320-C13 to NBR 14136 | 01063320 |
| Not Shown | Cord, Power IEC60320-C13 to KSC 8305 | 01063338 |
| Not Shown | Cord, Power IEC60320-C13 to NEMA 5-15 | 01063346 |
Follett E7 Series Interior – After Serial K70778
| Reference | Description | Part No. |
|---|---|---|
| 1 | Valve, Dispense Solenoid (water option) | 00968917 |
| 2 | Switch, Cleaning | 00957712 |
| 3 | Drain/Feed Tube with Cap | 00957720 |
| 4 | Valve, Failsafe Solenoid | 00968925 |
| 5 | Compressor with Mounting Hardware (230 V/50 Hz) | 00968933 |
| 5 | Compressor with Mounting Hardware (220 V/60 Hz) | 01062314 |
| 6 | Condenser | 00958017 |
| 7 | Condenser Fan and Cord | 00968941 |
| 8 | Control Board with Stand-offs | 00969048 |
| 9 | Capacitor, Gearmotor | 00968958 |
| 10 | Sensor, Retainer Hardware Kit | 00958066 |
| 11 | Relay and Overload (230 V/50 Hz) | 00968966 |
| 11 | Relay and Overload (220 V/60 Hz) | 01065143 |
| 12 | Refrigeration, Piping Assy | 00958132 |
| 13 | Power Input | 00968974 |
| Not Shown | Cord, Power IEC60320-C13 to BS 1363 | 00976753 |
| Not Shown | Cord, Power IEC60320-C13 to AS 3112 | 00976761 |
| Not Shown | Cord, Power IEC60320-C13 to CEE 7/7 | 00976779 |
| Not Shown | Cord, Power IEC60320-C13 to NBR 14136 | 01063320 |
| Not Shown | Cord, Power IEC60320-C13 to KSC 8305 | 01063338 |
| Not Shown | Cord, Power IEC60320-C13 to NEMA 5-15 | 01063346 |
Follett E7 Parts – Series Interior Model E7CL100a
| Reference | Description | Part No. |
|---|---|---|
| 1 | Switch, Cleaning | 00957712 |
| 2 | Drain/Feed Tube with Cap | 01102946 |
| 3 | Compressor with Mounting Hardware (230 V/50 Hz) | 00968933 |
| 4 | Condenser | 00958017 |
| 5 | Condenser Fan and Cord | 00968941 |
| 6 | Control Board with Stand-offs | 00969048 |
| 7 | Capacitor, Gearmotor | 00968958 |
| 8 | Sensor, Retainer Hardware Kit | 00958066 |
| 9 | Relay and Overload (230 V/50 Hz) | 00968966 |
| 10 | Refrigeration, Piping Assy | 00958132 |
| 11 | Power Input | 00968974 |
| 12 | Pinch clamp, Storage Bin Tubing | 00988238 |
| 13 | Tubing, Storage Bin Drain (includes barb fitting and hose clamp) | 01102979 |
| Not Shown | Cord, Power IEC60320-C13 to BS 1363 | 00976753 |
| Not Shown | Cord, Power IEC60320-C13 to AS 3112 | 00976761 |
| Not Shown | Cord, Power IEC60320-C13 to CEE 7/7 | 00976779 |
| Not Shown | Cord, Power IEC60320-C13 to NBR 14136 | 01063320 |
| Not Shown | Cord, Power IEC60320-C13 to KSC 8305 | 01063338 |

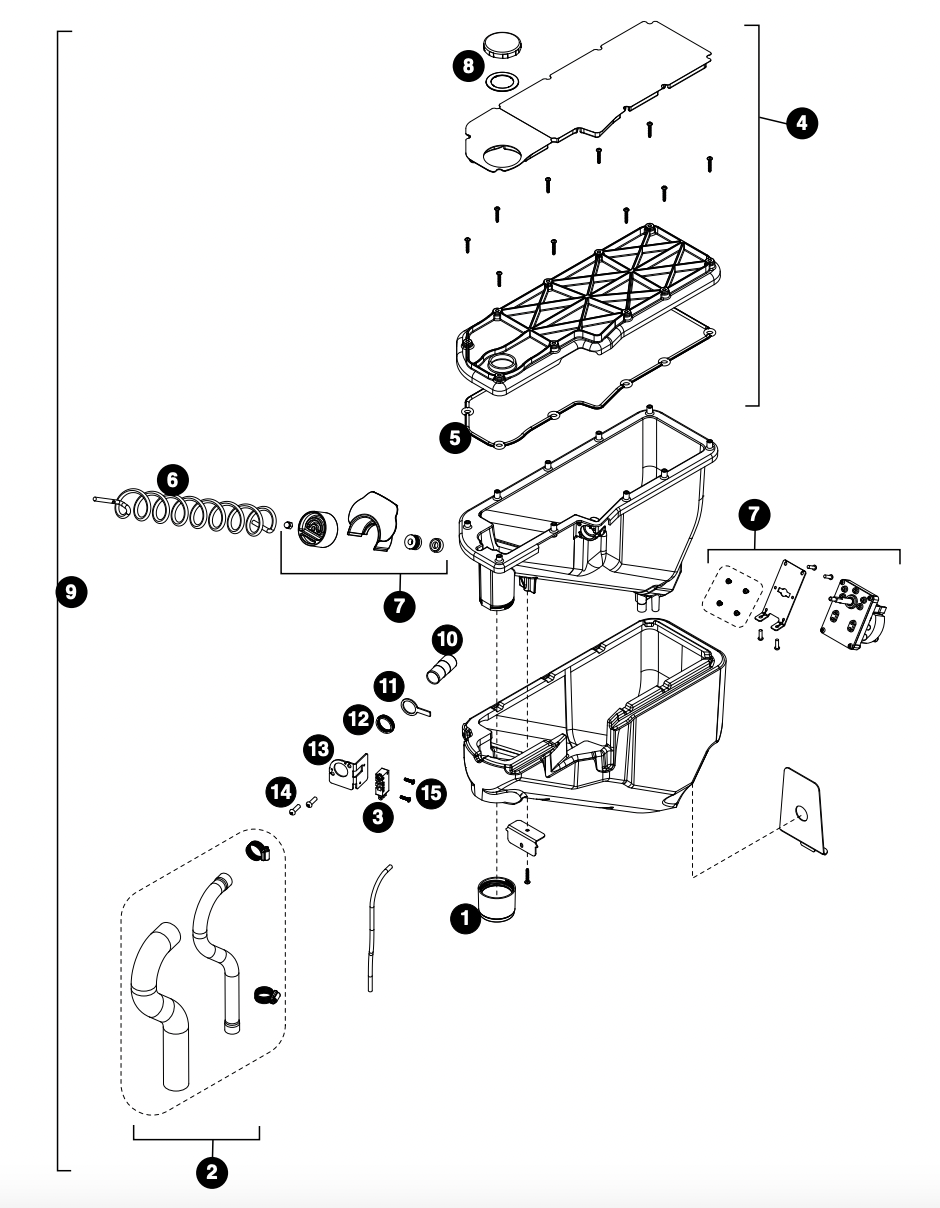

Follett E7 Series Interior – Bin Assembly – After Serial K46457
| Reference | Description | Part No. |
|---|---|---|
| 1 | Ice Chute, Inside Thread | 01238906 |
| 2 | Ice Transport Tubing with Insulation | 00957746 |
| 3 | Switch, Shuttle | 00957753 |
| 4 | Lid, Bin Assy | 01233808 |
| 5 | Lid, Gasket, 7 Series | 01233824 |
| 6 | Auger, Dispense | 00957795 |
| 6 | Auger, Dispense | 00931113 (Serial numbers K46457-K70778) |
| 7 | Assembly, Motor Dispense | 01233865 |
| 8 | Cap and gasket | 01233816 |
| 9 | Bin assembly, 7 Series (does not include ice transport tube and insulation) | 01233840 |
| 10 | Coupling, transport tube | 00998278 (Above serial number K70778) |
| 11 | Flag, shuttle | 00998286 (Above serial number K70778) |
| 12 | Spring, wave | 00998302 (Above serial number K70778) |
| 13 | Bracket, shuttle support (Before serial number K46457) | 00998260 (Above serial number K70778) |
| 14 | Bracket, shuttle support (After serial number K46456) | 00998336 (Above serial number K70778) |
| 15 | Screws (2), self-tapping, #10 x 5/8 | 00998328 (Above serial number K70778) |
| 16 | Screws (2), M3 x 12 Phillips pan head | 00998294 (Above serial number K70778) |

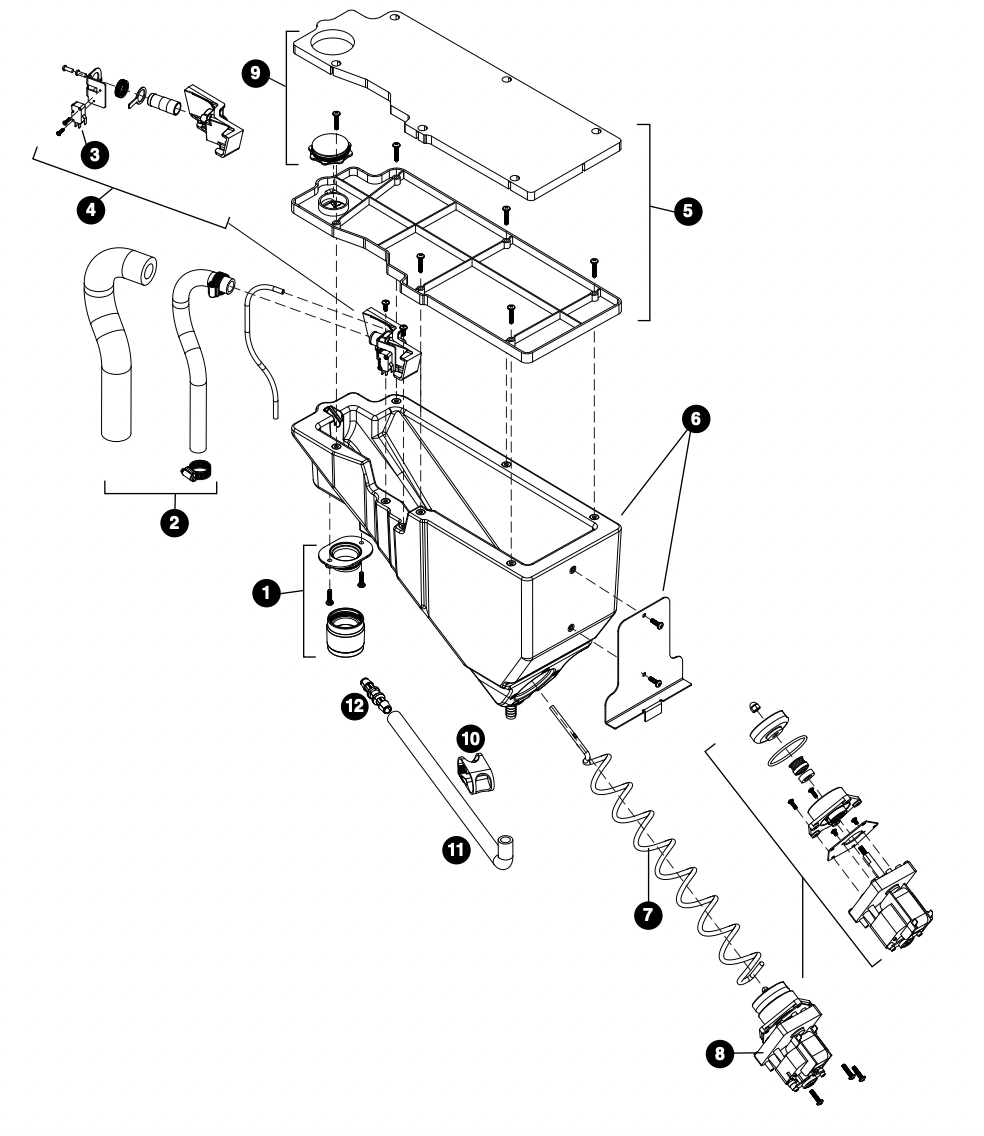

Follett E7 Series Interior – Bin Assembly – Seriel E01087 to K46456 and E7CI100A
| Reference | Description | Part No. |
|---|---|---|
| 1 | Ice Chute Assembly | 00957670 |
| 2 | Ice Transport Tubing with Insulation | 01102953 |
| 2 | Ice Transport Tubing with Insulation | 00957746 (Seriel E01087 to K46456) |
| 3 | Switch, Shuttle | 00957753 |
| 4 | Shuttle, Complete Assy | 00957761 |
| 5 | Lid, Storage Bin Assy | 00957779 |
| 6 | Storage Bin, Assy | 00957787 |
| 7 | Auger, Dispense | 00931113 |
| 8 | Motor, Dispense | 00968982 |
| 9 | Cap and Insulation, Storage Bin | 00957936 |
| 10 | Pinch clamp, Storage Bin Tubing | 00988238 |
| 11 | Tubing, Storage Bin Drain (includes barb fitting and hose clamp) | 01102979 |
| 12 | 1/2" Barb Fitting, Drain Tube | 01094929 |
| Not Shown | Bin Cap | 00931519 (Serial D17619 and below) |
| Not Shown | Ice Chute | 00927210 (Serial D17619 and below) |
| Not Shown | Chute Adapter | 00926550 (Serial D17619 and below) |

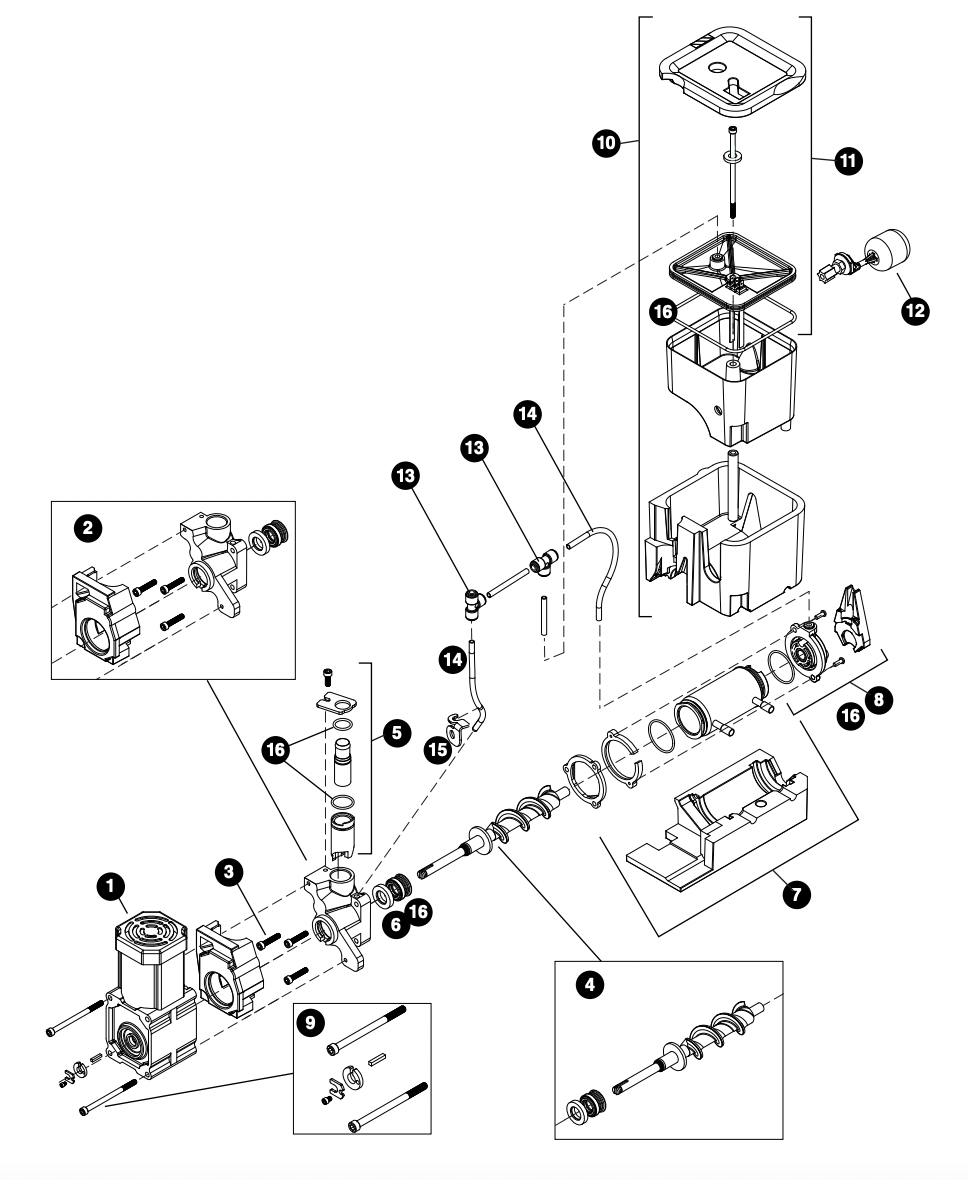

Follett E7 Parts – Evaporator Assembly
| Reference | Description | Part No. |
|---|---|---|
| 1 | Gearmotor Assy | 00968990 |
| 2 | Main Housing with Front Seal and Screws | 00957829 |
| 3 | Screws, Main Housing | 00957837 |
| 4 | Auger with front sea | 00957845 |
| 5 | Ice Compression Nozzle Assy | 00957852 |
| 6 | Front Seal and O-Ring | 00957860 |
| 7 | Evaporator Assembly with Insulation | 00957878 |
| 8 | Housing, Bushing with Insulation | 00957886 |
| 9 | Hardware kit, Gearmotor (For serial numbers E01087 and above) | 01048628 |
| 9 | Hardware kit, Gearmotor (For serial numbers below E01087) | 00957894 |
| 10 | Reservoir and Float Complete Assy | 00957902 |
| 11 | Lid, Reservoir with Insulation and O-Ring (does not include bolt) | 00957910 |
| 12 | Float Valve | 00957928 |
| 13 | “T” Fitting - 1/4" | 502923 |
| 14 | Tubing - 1/4" (sold in 12" increments) | 502079 |
| 15 | Vent Tube Retainer (includes vent tube) | 01278779 (Above serial K70778) |
| 16 | Seal kit (includes 2 ft of 1/4" tubing) | 01348093 (Above serial K70778) |
Follett E7 Parts – Evaporator Assembly
| Reference | Description | Part No. |
|---|---|---|
| Base Stand | ||
| 1 | Front Panel, Base | 00958108 |
| 2 | Latches with Bayonets, Base | 00958116 |
| Not Shown | Tray, Base | 00958124 |
| Not Shown | Packaging for Returns, Base | 00957985 |
| Miscellaneous | ||
| Not Shown | Water filter cartridge, 5 micron | 00968107 |
| Not Shown | IMS III sanitizer concentrate, 16 oz | 00979674 |
| Not Shown | SafeCLEAN Plus liquid, 6 pack | 01149954 |
| Not Shown | SafeCLEAN Plus liquid, case of 24 | 01149962 |
| Not Shown | 6" Legs for base stand, set of 4 | 00956318 |
| Not Shown | 4" Legs for countertop dispenser, set of 4 | 00956300 |
